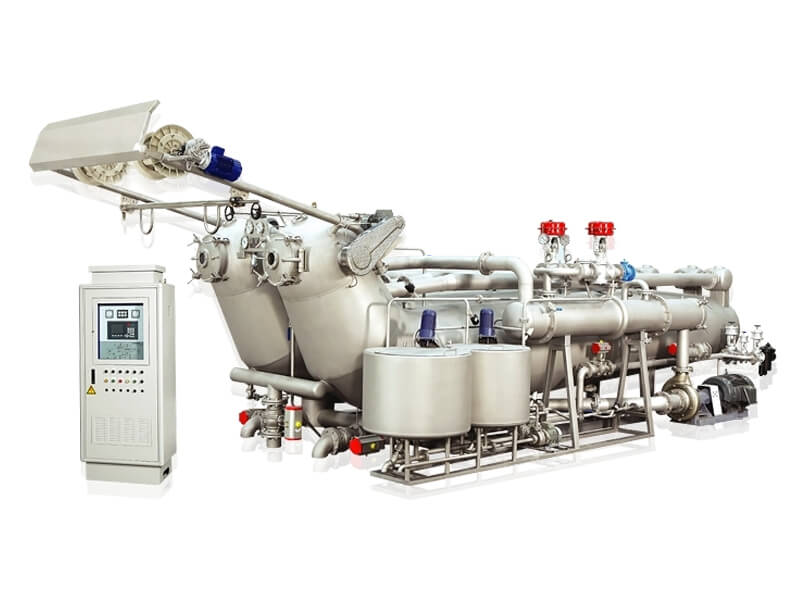

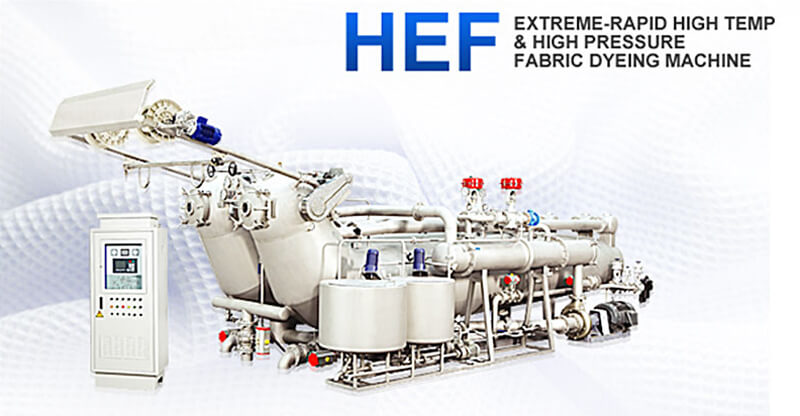

HEF Fabric Dyeing Machine

ADVANTAGES

HEF extreme rapid high temperature & high pressure dyeing machine is designed to save energy, man power, chemicals, time and space. Suitable for woven or knitted fabrics: N100%, T100%, T/C, N+OP, T+OP, CVC, T/R, N/C and N/T. Also micro fiber fabrics like TRICOT, poly-peach skin, micro suede and jacquard.

Low liquor ratio, energy efficient design

Chamber is specially designed to reduce the water consumption when dyeing. Inner plate is patent design with special w-shaped corrugated floor. Fabric is flowing unhindered in its circulating cycle without need of large motor pump, saving electricity cost. Liquor ratio is 1:5 ~ 7.

Fabric flow control system, smooth fabric flow

Fabric flow control design, the fabric is fold up in a regulated, tangle free manner. No need of large liquid flow to push the fabric forward. Hence reduce the liquor ratio and dyeing cost effectively. Fabric flowcontrol system is adjustable according to different types of fabrics, allowing one dyeing machine to dye a variety of fabrics.

Expansion device, no crease mark & no rolling selvedge

The front expansion device provides continuous impact & frequently changes the fabric position. Good to provide fabric expansion and to open filament, effective against curling fabrics. Rear expansion device allows the fabric to relax and softening, increasing the quality of dyeing.

Low tension, high quality, fast dyeing system

With smooth fabric circulation and regulated fabric folding, the fabric is carried into the main reel at its lowest tension. The speed of the main reel can be controlled precisely, so the speed of the reel and the fabric is at a simultaneous pace, avoiding any usual flaws.

Unique w-shaped inner plate, high production capacity

Special designed w-shaped inner plate plus large chamber structure, allowing one single nozzle to dye up to two rope of fabric at one time (for fabric < 200g/yard). Greatly increase the production capacity (increase up to 40% and above) and reducing the cycle time required, achieving a very even color shade. 。

Central control system, automatic computer contro

The machine is fully automatic controlled with advanced computer system. Design to have a precise dye feeding control, greatly enhance the dyeing success ratio and quality of dyeing. In conjunction with the central control system will provide better production system and management.

Advanced chamber device with Intelligent Rinsing

Patented low liquid ratio chamber device. The wasted volume inside the chamber is integrated with the intelligent rinsing system, shortens the rinsing period and at the same time low liquid ratio.

APPLIED TO......

Woven or knitted fabrics: N100%, T100%, T/C, N+OP, T+OP, CVC, T/R, N/C and N/T. Also micro fiber fabrics like TRICOT, poly-peach skin, micro suede and jacquard.
